3D Museum Puzzle

Applied to a casual game studio, got rejected, built a working 3D puzzle prototype instead.

Role

Design Engineer

Project

Self-initiated prototype

Timeline

2025

Focus

3D interaction design
Real-time WebGL
Asset pipeline

LinksLive prototype Source

01 · Context

Context

Applied for a product design role at a casual game studio. Color-by-number app, ad-monetized. They said UX was solid but they needed a UI artist. Didn’t get the offer.

I wanted to see if I could build a more mechanically complex prototype from scratch — concept through deployment. Picked 3D puzzles: spatial reasoning, physics-adjacent interaction, and a content pipeline I could source for free.

02 · Content sourcing

Content sourcing

Museums have been releasing photogrammetry scans of their collections. I took a scan of Äskulap by Veit Königer (c. 1776, Schönbrunn Palace, Vienna), fragmented it in Blender into 11 pieces, and exported as GLB.

The app includes an info panel that links to the original eMuseum Schönbrunn record — artist, date, material, provenance.

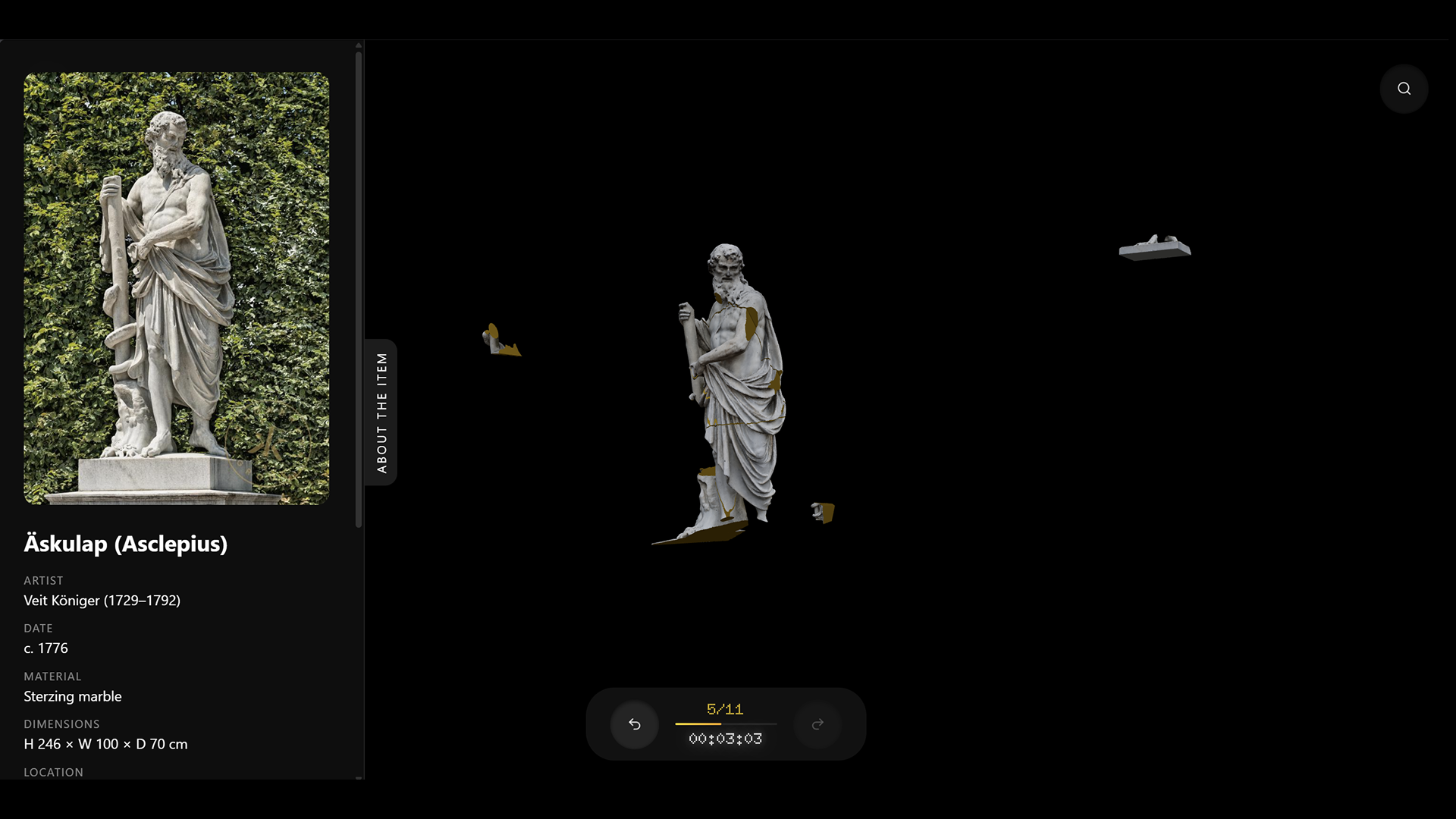

Info panel with museum metadata from the Schönbrunn eMuseum collection.

03 · Snap logic

Snap logic

Standard approach: each fragment has a fixed target position in world space. Drag close enough, it snaps to that position. Problem — the player has to guess the absolute location, which feels arbitrary in 3D.

I used relative snapping instead. A fragment snaps when it’s close enough to a neighbor that’s already placed. Target position = neighbor’s current position + the offset between their original positions. The player doesn’t need to find the right spot in space — just bring two related pieces near each other.

Snapped pairs form a group. Groups move together. When a fragment bridges two groups, they merge. This came from the adjacency map built at load time from original mesh positions (threshold 1.5 units).

Design decision

Snap threshold is 0.8 units distance + 0.26 rad rotation. Loose enough that it doesn’t feel fiddly, tight enough that accidental snaps are rare.

Mid-assembly with fragments partially placed — Mid-assembly — 5 of 11 fragments placed.

04 · Highlight

Highlight

With 11 fragments scattered on a sphere, small pieces get lost. The search button re-scatters unplaced singles to new Fibonacci sphere positions and adds a temporary halo.

The halo is a procedural CanvasTexture (512×512, pow falloff with alpha dither to avoid 8-bit banding), rendered as an additive-blended sprite. It fades over 4.5 seconds. Groups are left in place — only singles move.

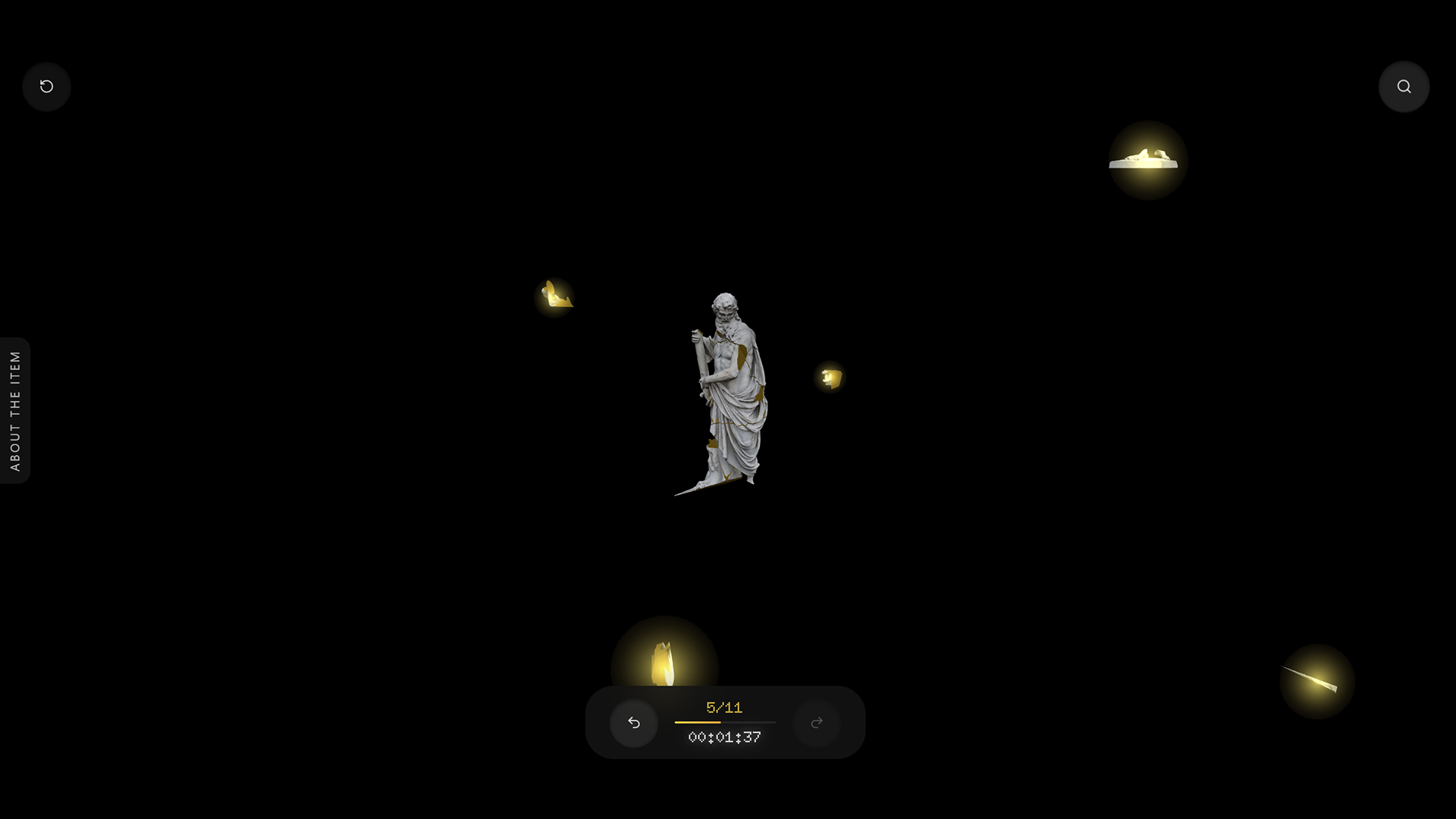

Halo highlight on unplaced fragments after search.

05 · UI

UI

Bottom dock with three elements: undo, progress, redo. Progress counter uses Doto (a dot-matrix Google Font) with a gradient fill bar underneath. Timer starts on first interaction — no start screen.

Undo/redo stores full state snapshots (position, rotation, group membership for every fragment). Limit 50. Vectors and sets are deep-cloned to isolate snapshots from mutable scene state.

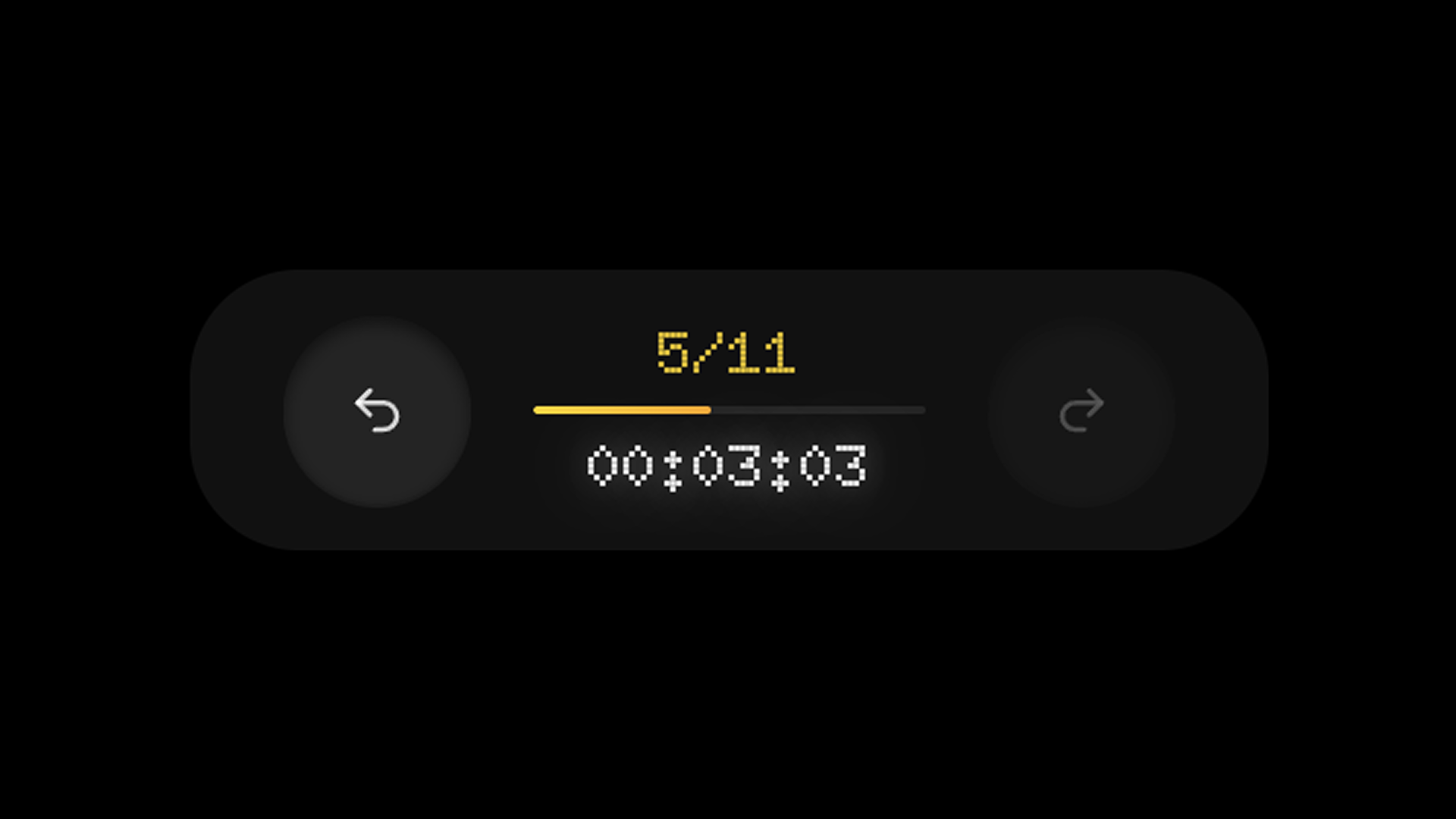

Progress dock with undo/redo — Progress dock — Doto font, animated fill bar, undo/redo.

06 · Result

Result

Working prototype, deployed on Vercel. End-to-end: photogrammetry scan → Blender fragmentation → GLB export → React Three Fiber runtime → deployment. Solo — no designer-to-developer handoff because there was no split. Prototyped with AI code tools (Windsurf, Claude Code), finished manually where they broke.

Key insight

AI code tools made it practical to test approaches I wouldn’t have committed to manually — Fibonacci sphere scramble, procedural halo texture, relative snap. Each took under an hour to prototype. Without that, I’d have picked the simplest option.
